Perforated Metal Screen

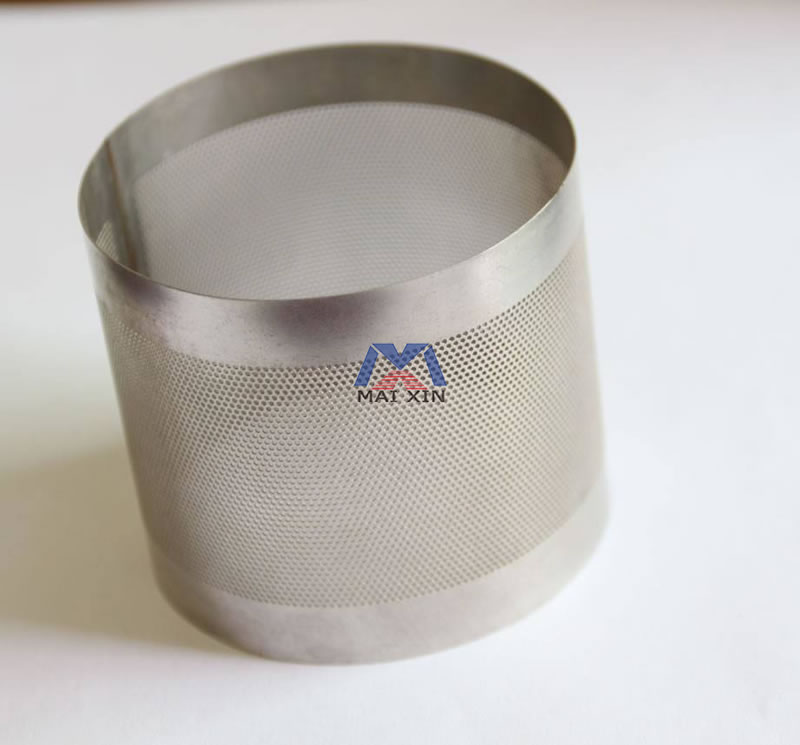

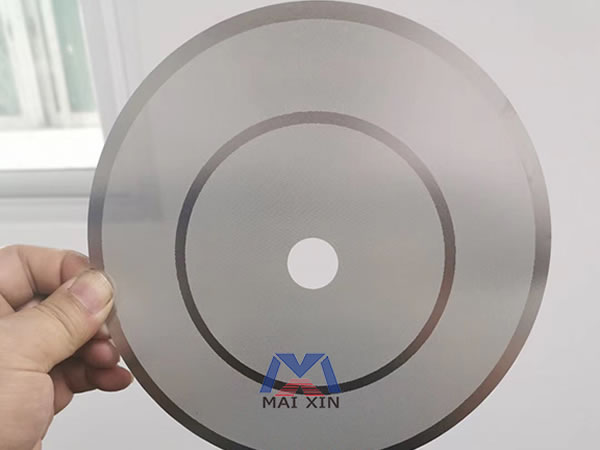

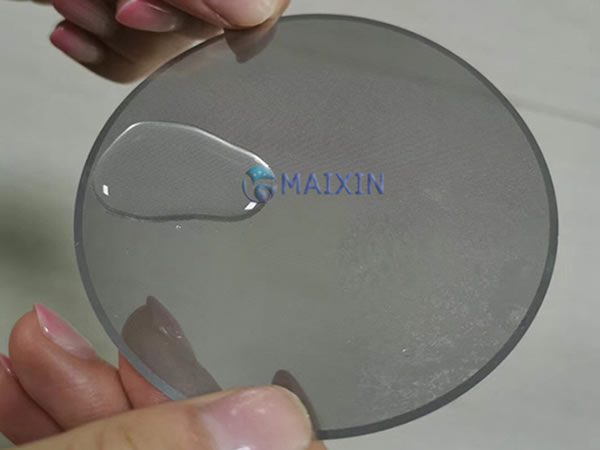

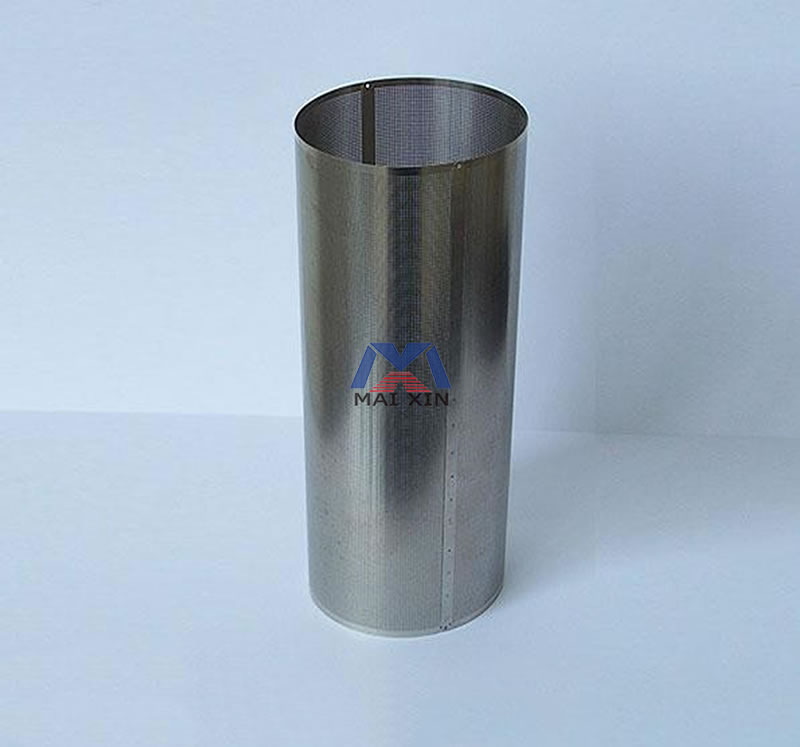

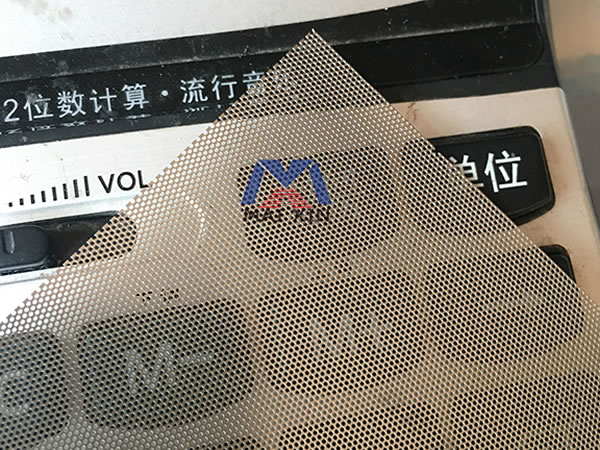

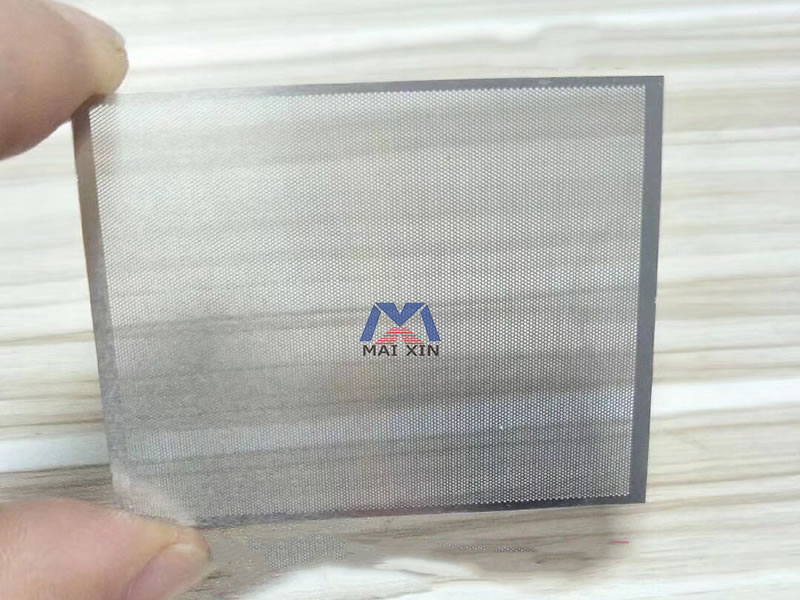

Etching Metal Mesh

Etching o metal can be a chemical process using acid, a photochemical process, or an electrochemical prcess, basic echnique for acid metal etching is to apply a resist to the areas of a metal plate, either to the whole plate or just to the areas that one wants to remain unaffected, we can etch part of the metal sheet or etch the whole metal sheet, it can be controled by technology.

Materials

stainless steel 304, 316, 210 etc, high quality alloy plate or belt, etc.

Production process

chemical erosion

Holes range

 20μm-100μm

Material thickness

0.02mm - 0.5mm

Etching area

usually the etching area 600x600mm, special size can be cusotm-made.

Application

(1) Petroleum, chemical, food, pharmaceutical precision filters, filter plates, filter cartridges, filters; (2) The electronics industry metal drain plate, cover, flat pin, lead frame,metal substrate; (3) Precision optical and mechanical plane parts, springs parts; (4) Bump-type friction plate and other flat parts; (5) Metal plate and complex metal decorative panels and fine crafts.
