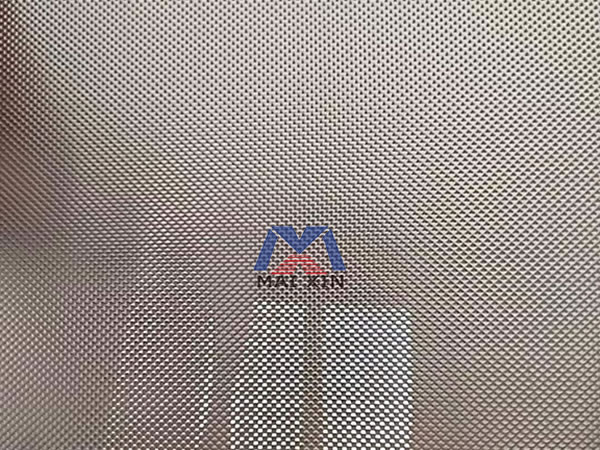

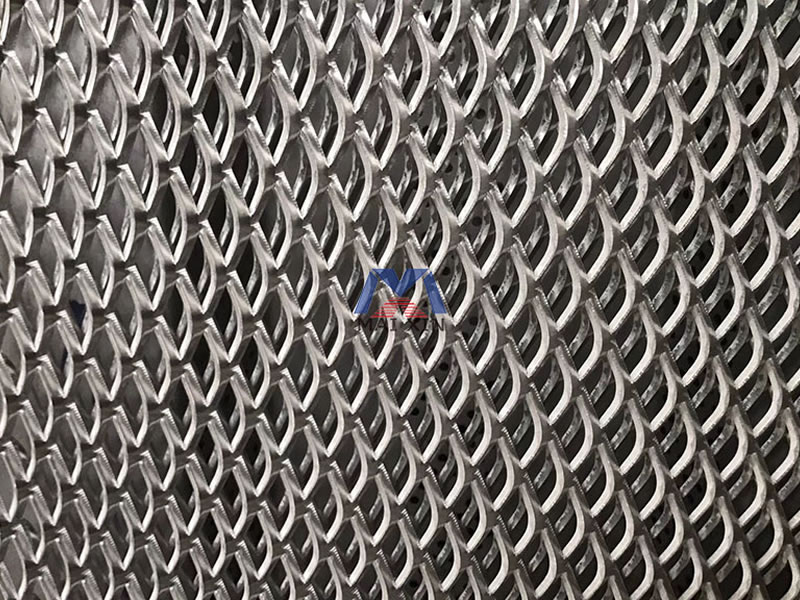

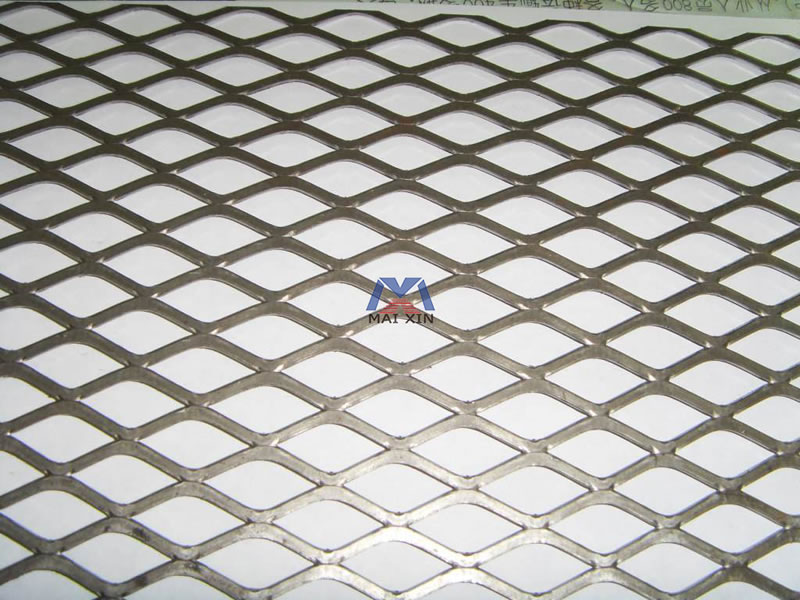

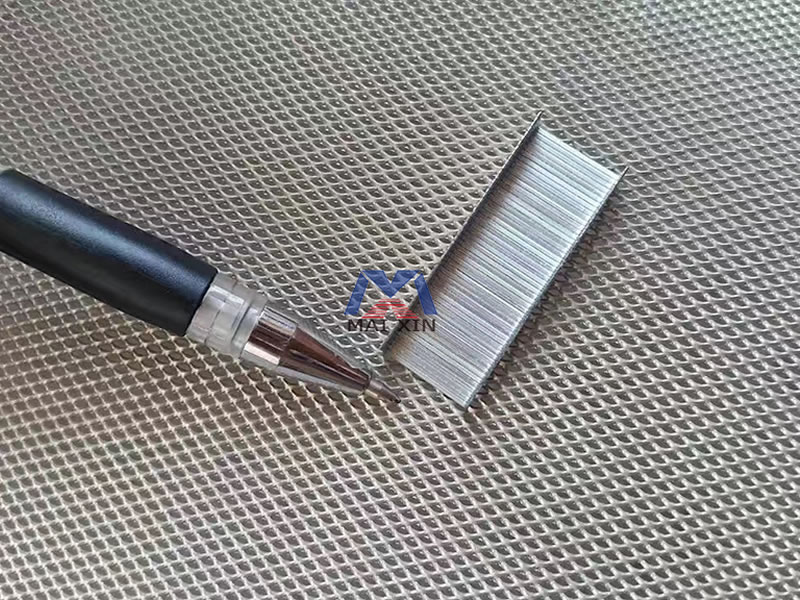

Expanded Metal Mesh is a finished product as it comes from the press after having been die cut and expanded. Each sheet that comes off the expander is in standard or regular form with the junctions at the strands and bonds forming a ridge surface.
Materials : aluminium plate ,thin low carbon steel plate, stainless steel plate, Al-Mg alloy plate, copper plate, nickel plate.
Applications: screening and filtering, Architectural decoration,protection,partition,ventilation and heat dissipation, etc.

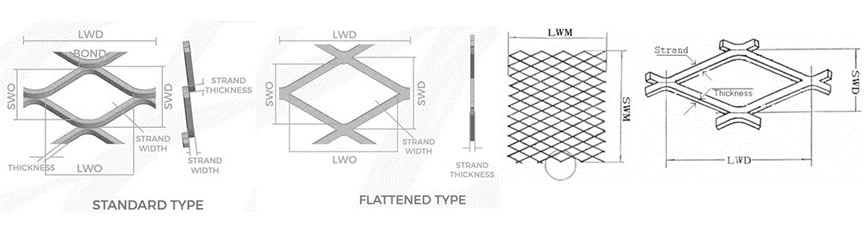

Mesh size mm | Strand size mm | Weight kg/m2 | Standard product size | ||
SW | LW | T | W | Weight per sheet(kg) | |
12 | 30.5 | 1.2 | 1.5 | 2.38 | 4.76 |
12 | 30.5 | 1.5 | 2.0 | 3.97 | 7.94 |
12 | 30.5 | 2.0 | 3.0 | 7.92 | 15.9 |
22 | 50.8 | 1.5 | 2.0 | 2.16 | 4.32 |
22 | 50.8 | 2.0 | 2.0 | 2.6 | 5.2 |
22 | 50.8 | 2.5 | 3.0 | 5.41 | 10.8 |
22 | 50.8 | 3.0 | 3.0 | 5.75 | 11.5 |
34 | 76.2 | 2.0 | 2.5 | 2.33 | 4.66 |
34 | 76.2 | 3.0 | 3.5 | 4.9 | 9.80 |
34 | 76.2 | 4.0 | 4.3 | 7.55 | 15.1 |
34 | 76.2 | 4.5 | 5.0 | 10.5 | 21 |
36 | 101.6 | 4.0 | 5.0 | 8.81 | 17.6 |
36 | 101.6 | 4.5 | 7.0 | 14 | 28 |
36 | 101.6 | 5.0 | 7.0 | 16.5 | 33 |
36 | 101.6 | 6.0 | 7.0 | 18.5 | 37 |
34 | 135.4 | 4.0 | 5.0 | 9.33 | 18.7 |
34 | 135.4 | 4.5 | 5.0 | 10.5 | 21 |
34 | 135.4 | 5.0 | 6.0 | 14 | 28 |
34 | 135.4 | 6.0 | 7.0 | 19.6 | 39.2 |
Special specifications can be customized production.
